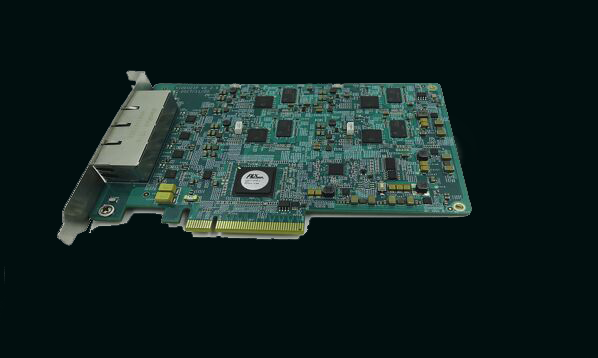

This video compression card is widely used in video surveillance, image processing, AI and other applications. This video card is based on the PCIE2.0 X4 structure and integrates 4 video processing SOCs.
|
DSP |
HI3519V101 |
|
The internet |
10 /100/1000M adaptive |
|
DDR |
DDR3 1GB 32bit |
|
FLASH |
SPI NOR FLASH 16MB |
Technical indicators:
|
Processing capability (H264/H265 codec) |
4 way 4K@30fps 8 way 2K@30fps 16 channels 1080P@30fps |
|
Electrical Interface |
PCIE2.0 X4 |
|
operating system |
UBUNTUN 14.05 |
|
Mechanical Dimensions |
168x112mm |
|
Power requirement |
12V@3A |
|
Power consumption |
<15W |
|
Operating temperature |
Commercial grade 0 ~ 55 °C |
